Chapter 5 - Results for C/H/Cl Systems

5.1 Introduction



For hot filament and microwave, rf and dc plasma CVD systems,3.4,5.1 deposition of high quality diamond films using hydrogen/carbon gas mixtures at any appreciable rates can be achieved only if the substrate temperature is maintained at around 900C. As a result, the choice of substrate is limited to very few materials. Owing to its remarkable chemical, physical and optical properties,5.2 diamond has great potential for many industrial applications so, by altering the conditions which produce high quality films at lower substrate temperatures, its applications may extend to the less thermally stable materials such as aluminium, stainless steel, glass, copper and plastics.



This has prompted the study of CVD diamond growth using other precursor gas mixtures. For instance, it is possible to grow CVD diamond films using either oxygen containing source gases, e.g. CH3OH5.3 and CO,5.4 in excess H2 or by the addition of small amounts of O25.5 to the standard hydrocarbon/H2 source gas mixture. The presence of gas phase oxygen can enhance diamond growth rates and also enable diamond synthesis at lower substrate temperatures. A survey of the different C/H/O source gas mixtures used to produce diamond films is summarised in the well known phase diagram of Bachmann et al.5.6 The apparent catalytic effect of oxygen in the CVD process enabling diamond growth at substrate temperatures lower than the standard (~900C) may therefore have possible important implications for coating such lower melting point materials as aluminium, or materials that are unstable at high temperatures in the reducing atmosphere typical of the CVD process. Such advantages cannot be fully exploited in hot filament CVD (HFCVD) reactors, though, because the presence of oxygen rapidly degrades the heated filament. In recent reports however, lower-temperature diamond deposition has also been achieved using either chlorine containing source gases, e.g. CH4-nCln (n = 1-4) diluted in hydrogen5.7-5.11 or by the addition of small amounts of Cl25.12 or HCl5.13 to the standard methane/hydrogen gas mixture.



One study,5.7 using monosubstituted halocarbons CH3F, CH3Cl, CH3Br or CH3I in H2 as the input gas mixture in a hot filament reactor, showed that with CH3Cl the diamond growth rates increased relative to those found using CH4 as the precursor. It was concluded that the increased reactivity of CH3Cl compared to the other methyl halides stems from the difficulty, in the one case, of forming atomic fluorine from CH3F and, at the other extreme, the inability of Br and I atoms to abstract terminating hydrogen atoms from the growing diamond surface. Other studies using chloride source gases (CH3Cl, CH2Cl2, CHCl3 and CCl4) both in hot filament reactors5.8,5.9 and in microwave plasmas5.10,5.11 have also shown that chloromethanes produce a slightly higher diamond growth rate than with methane at normal substrate temperatures (ca. 900C), and all indicate that this difference is more pronounced at lower substrate temperatures. Recently,5.12 a study using chlorine with typical H2/Cl2/CH4 ratios of 100/5/1 demonstrated that similar growth rates can be achieved at substrate temperatures 150C lower than that found for typical H2/hydrocarbon gas mixtures, and that the addition of a few percent of HCl to the standard CH4/H2 mixture could cause a tenfold enhancement in growth rates at 670C.5.13



A number of possible gas phase and gas-solid heterogeneous reaction mechanisms have been suggested for the apparent catalytic activity of chlorine in the CVD process. The C-Cl bond strengths in the various chloromethanes are weaker than the C-H bond in methane (see Table 5.1) so rupture of the C-Cl bond, by reaction with H atoms, can be achieved more readily to produce active methyl or chloromethyl (CH3-nCln, n=1-3) radicals. The latter species have been suggested as being more effective growth precursors than methyl5.7 because of the possibility of facile surface dehydrochlorination reactions.5.8 Alternatively, the catalytic properties of chlorine in the CVD process may be due to reactions with terminal C-H at the diamond surface, or the possibility of forming surface bonded C-Cl. The terminating H and Cl atoms essentially serve the same purpose in suppressing formation of sp2 bonding at the growing surface at high substrate temperatures. Abstraction of surface Cl atoms by atomic H, or removal of surface adsorbed H by atomic chlorine, has a significantly lower activation energy than H abstraction of surface H thereby enabling active surface sites to be created at lower substrate temperatures.5.13







Bond Bond strength (kJ/mol)

H-H 432

Cl-Cl 239

H-Cl 428

H-F 564

H-CH3 435

Cl-CCl3 305

Cl-CHCl2 331

Cl-CH2Cl 346*

Cl-CH3 352

F-CF3 540





Table 5.1. Bond dissociation energies ( taken from Reference 5.14 except for * which is taken from Reference 5.15).

The aim of the present work is to characterise the gas phase environment, and its variation with filament temperature, when chlorine containing precursors CH4-nCln (n=1-4) in H2 and CH4/Cl2/H2 mixtures are inputted as the source gases. Such information provides insight into the gas-phase chemical kinetics prevalent in the CVD process. We also wish to understand this behaviour in terms of changes in the gas-phase chemistry and/or the different gas-solid heterogeneous reactions when chlorine is present in the gas mixture.



5.2 Experimental Details



(a) Deposition experiments



Table 5.2 below shows the growth conditions used for the C/H/Cl system. Full experimental details on deposition techniques are given in Chapter 3 (Sections 3.1 and 3.2).



Pressure 20 Torr

Gases (1) CH4-nCln (n = 1-4), (2) 1% CH4 in Cl2/H2, the amount of chlorine varying from 1-4%.

Total gas flow rate 100 sccm

Substrate type Si (100) substrates (manually abraded)

Substrate temperature ~ 900C

Filament temperature 2300-2400C (filament current 6-6 A)

Filament/substrate distance 4 mm

Deposition time 6 hours



Table 5.2. Deposition conditions used for C/H/Cl system.


(b) Film analysis



The as-grown diamond films were investigated by scanning electron microscopy (SEM) and Auger electron spectroscopy (AES). The AES analysis was carried out using a Perkin-Elmer PHI 595 scanning Auger microprobe.



(c) Gas phase composition measurements



Gas-phase product distributions were monitored as a function of the filament temperature using the differentially pumped molecular beam mass spectrometer (MBMS). Filament temperatures were measured using a two-color optical pyrometer (Land Infrared) and the filament-to-sampling orifice distance was held at 4 mm for all readings. The absolute concentrations of the species monitored are determined by direct room temperature calibration with mixtures of known composition. Full description of the molecular beam mass spectrometer and the calibration procedures are given in Chapter 3 (Sections 3.3 to 3.5).



A series of quantitative measurements of the stable gas-phase species and CH3 radicals was made using, respectively, chloromethane (CH3Cl), dichloromethane (CH2Cl2), trichloromethane (CHCl3) or tetrachloromethane (CCl4) in H2 (See Figures 5.4 (a) to 5.4 (d) ). The signal intensities of the species monitored have been converted into mole fractions using the step-by-step procedure described in Chapter 3 (See Section 3.6). The following results are therefore presented as species concentrations as a function of filament temperature with no correction being made as a result of thermal diffusion (experimental data sheets for each precursor gas can be found in the appendix that follows this chapter).

Detection of all stable carbon and chlorine containing species, other than C2H4, was made with an ionizing electron energy of 15.6 eV. An electron energy of 13.6 eV was used for C2H4 in order to minimize interference from unwanted ions with the same mass-to-charge ratio or those arising from fragmentation of other ionic species (See Section 3.5 (b) ). For the same reasons, all CH3+ signal measurements were made using an ioniser voltage of 13.6 eV. However corrections have been made to the CH3+ signal arising from the dissociative ionization of CH3Cl (See Section 3.6 (b) ).



As previously mentioned (See Section 3.5 (c) ), introduction of a heavy species, such as Cl2, in the gas mixture results in mass discrimination effects in the molecular beam,3.11 particularly when the concentration is greater than ~1%. Consequently, the lighter species, such as CH4, are preferentially excluded from the centre of the beam by the heavier Cl2 molecules (See Figure 3.20). When performing gas-phase composition measurements using CH4/Cl2/H2 containing gas mixtures, a minor modification had to be made to the direct room temperature calibration procedure in order to determine accurate concentrations for each species monitored. This was achieved by measuring the signal loss for all the species monitored during the calibration process when Cl2 is added to the gas mixture. For example, if 1% Cl2 was introduced to the standard 1% CH4/H2 during sampling, then the same concentration of Cl2 was added to that gas mixture when calibrating for methane. The attenuated CH4+ signal therefore constitutes 1% in the gas-phase when 1% Cl2 is present in the process gas mixture, allowing for the mass discrimination effects. Similar corrections were made when 2% Cl2 and 4% Cl2 were added to the CH4/H2 gas mixture during MBMS measurements.


5.3 Analysis of the diamond films



Scanning electron micrographs of diamond films grown on silicon when using 1% each of CH4-nCln (n=1-4) in H2 as the process gas mixture are shown in Figure 5.1. The SEM images in Figure 5.2 show that polycrystalline diamond films were also grown successfully using up to 3 % Cl2 in a 1% CH4/H2 gas mixture. Further addition of chlorine (~4%) leads to a significant change in the film morphology (See Figure 5.2(d) ) with a concomitant reduction in the film quality and growth rates.



Fig.5.3

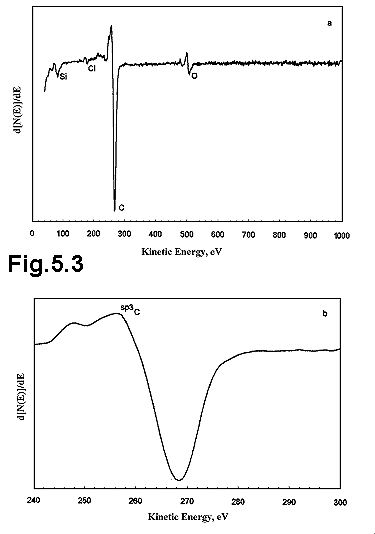

Figure 5.3 (a) shows a typical AES spectrum of the diamond film surface grown using a 2% Cl2 was introduced in a 1% CH4 in H2 gas mixture. The vertical scale on the AES spectrum is a differential scale used in order to display the peaks more clearly. The fine structure of the KLL carbon peak (Figure 5.3 (b) ) is characteristic of that found with natural diamond.5.16, 5.17 The peak is shifted slightly to lower energies (by ca. 4 eV) compared with the peak obtained from the very poor quality diamond when 4% Cl2 was used for growth. This energy shift arises mainly from charging effects on the diamond relative to the more conducting amorphous or graphitic carbon.

Also evident on the spectrum is a small peak at an electron energy of 180 eV indicative of the presence of chlorine on the diamond surface. After argon ion sputtering for 30 seconds, resulting in etching of the diamond film to a depth of ~120 ナ, the chlorine was no longer detectable indicating that this chlorine is present only on the film surface and not in the bulk diamond. In AES, the concentration of any particular element can be calculated from its peak intensity multiplied by a sensitivity factor. The sensitivity factors are determined empirically and are unique to each element. The relative intensity of the surface Cl peak suggests a chlorine concentration of ~0.5%; however, this is an average value obtained over the top four diamond monolayers. Given that the chlorine is present only on the diamond surface then about 2% of the surface carbon atoms are terminated by chlorine rather than hydrogen.



Similar AES results indicating high quality diamond with only a trace of chlorine on the film surface were obtained for all the as-grown films where the Cl atom input fraction was 0.06 or below (i.e. 3% Cl2 in the process gas mixture). However, for growth conditions where the Cl fraction was greater than 0.06 the fine structure of the KLL carbon peak showed that the resulting films were of poor quality with significant deposition of non-diamond carbon phases. Also incorporated into the film were appreciable amounts of tantalum and chlorine, indicating degradation of the filament at higher chlorine concentrations.

a) Fig.5.1a b) Fig.5.1b
c) Fg.5.1c d) Fig.5.1d

Figure 5.1. Scanning electron micrographs (SEM痴) of diamond films grown on silicon using input gas mixtures of 1% each of: (a) CH3Cl; (b) CH2Cl2; (c) CHCl3; and (d) CCl4 in hydrogen.



a) Fig.5.2a b) Fig.5.2b
c) Fig.5.2c d) Fig.5.2d

Figure 5.2. Scanning electron micrographs (SEM痴) of diamond films grown on silicon using input gas mixtures of 1% CH4 in H2 with additional Cl2: (a) 1%; (b) 2%; (c) 3%; and (d) 4%.



Fig.5.4a

Fig.5.4b

Fig.5.4c

Fig.5.4d

5.4 Gas composition versus filament temperature for a variety of chlorine containing precursor gases in H2



(a) Chloromethane (1% CH3Cl in H2)

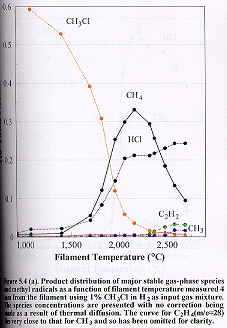

The effects of the variation of filament temperature between room temperature (25C) and 2690C on the mole fractions of the major dissociation products of chloromethane gases [CH4 (m/e =16), C2H2 (m/e =26), C2H4 (m/e =28) and HCl (m/e =36 for H35Cl)] were examined for an initial feedstock of 1% CH3Cl in H2 measured 4 mm from the filament at 20 Torr (Figure 5.4 (a) ). Inspection of Figure 5.4 (a) shows that there is a rapid decrease in the concentration of CH3Cl for filament temperatures above ~1700C; at the same time there is significant rise in the CH4 and HCl mole fractions such that these become the dominant species at ~2100C. However, at filament temperatures above ~2100C the CH4 concentration decreases steadily, and a subsequent increase in the C2H2 and CH3 concentrations is observed.



(b) Dichloromethane (1% CH2Cl2 in H2)

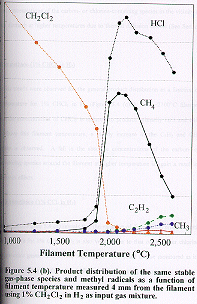

Figure 5.4 (b) shows how the distribution of the same major product gases vary as a function of filament temperature for an initial CH2Cl2/H2 feedstock ratio of 1% measured at 4 mm from the filament. The gas phase composition as a function of filament temperature for dichloromethane are remarkably similar to that for chloromethane. The concentration of CH2Cl2 decreases rapidly for filament temperatures above ~1700C, and a corresponding rise in the HCl concentration is observed reaching a maximum value at ~2100C. Similarly, at this filament temperature the dominant hydrocarbon species is methane, while at higher temperatures acetylene (and CH3 radicals) are formed. Note that the absolute concentrations of the carbon- or chlorine-containing species in the vicinity of the filament diminish at higher temperatures due to thermal diffusion effects (See Section 3.5 (e) ).



(c) Trichloromethane (1% CHCl3 in H2)

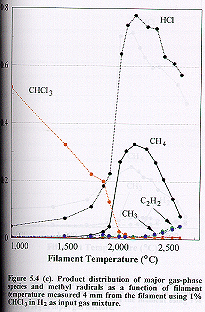

Similar trends were observed for the general product distribution as a function of filament temperature for 1% CHCl3 in H2 (Figure 5.4 (c) ). At ~2100C filament temperature the concentration of CHCl3 is reduced to produce primarily HCl and CH4 species. Above this filament temperature, a steady increase in the C2H2 and CH3 concentrations is observed. A fall in the absolute concentrations of the carbon- or chlorine-containing species around the filament at higher temperature is again a result of thermal diffusion effects.



(d) Tetrachloromethane (1% CCl4 in H2)

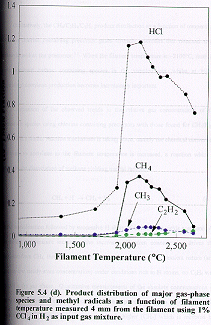

Inspection of Figure 5.4 (d) reveals that the variation of dissociation products with filament temperature for 1% CCl4 in H2 is also very similar to that of the other chlorine containing precursor gases. The C35Cl4+ signal (m/e=152) could not be monitored as its mass-to-charge ratio is beyond the measurable range of the mass spectrometer.



Mechanism



Qualitatively, the CH4/C2H4/C2H2 product distribution as a function of temperature for all the chlorine containing precursor gases strongly resembles that obtained when methane is used as the precursor.3.1 When the filament temperature is ~2100C, methane is the dominant carbon containing species in the sampled gas, whilst at higher temperatures acetylene production becomes increasingly important.



Comparison of the observed trends in the relative gas concentrations of the hydrocarbon species using chlorine containing precursors with those found for CH4/H23.1 suggests that a similar reaction mechanism is taking place, namely the chemical conversion of methane to acetylene as the filament temperature is increased, a reaction which is initiated by the dissociation of methane yielding methyl radicals:



CH4 + H CH3 + H2 (4.1)



Methyl recombination followed by successive H abstraction reactions yields acetylene. As the filament temperature increases, the increasing H atom concentration drives the equilibrium from CH4, through C2H6 and C2H4 to C2H2. Due to its transient nature (and thus very low steady-state concentration) under conditions rich in H atoms, no C2H6 was detected in the gas phase. Quantitative measurements of the absolute concentrations of methyl radicals were made simultaneously and are displayed in Figures 5.4 (a) to 5.4 (d). An increase in the filament temperature results in higher [CH3] which is mirrored by increased [C2H2]. As with methane and other hydrocarbon precursor gases3.1, it is clear that the CH3 radical is also an essential intermediate in the formation of acetylene when chlorine containing input precursors are used.



For example, inspection of Figure 5.4 (b) shows that the concentration of dichloromethane diminishes rapidly for filament temperatures above ~1700C as the relatively weak C-Cl bonds are broken in preference to C-H bonds by Cl abstraction with H atoms, e.g.



CH2Cl2 + H == CH2Cl + HCl

CH2Cl + H == CH2 + HCl, etc. (5.1)



This may reflect a role for direct pyrolysis of, for example,



CCl4 Cl + CCl3 (5.2)



followed by the equilibrium



Cl + H2 == H + HCl (5.3)



The key point here would be that pyrolytic H-H bond fission (in the gas phase or on the filament surface) would not be necessary to initiate the whole reaction sequence.

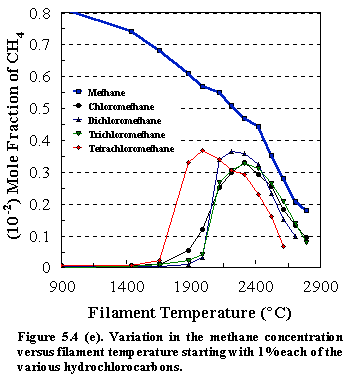

Fig.5.4e

Fig.5.4f

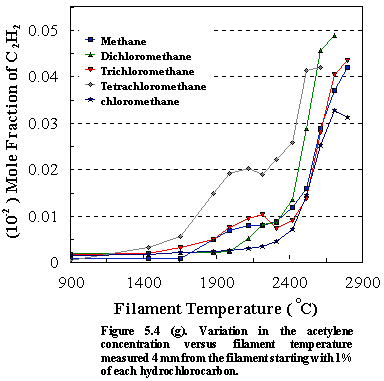

Fig.5.4g

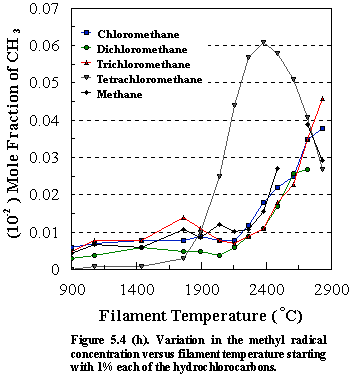

Fig.5.4h

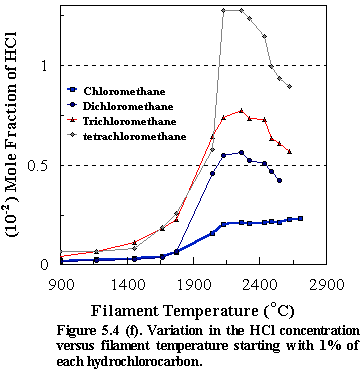

A corresponding rise in the HCl concentration is observed reaching a maximum value at the same temperature as methane (~2100C). At this temperature almost all of the dichloromethane has been reduced. Similar trends were observed for all of the other CH4-nCln, (n=1-4) species, resulting in the reduction of the precursors to produce primarily methane and HCl, (see Figs. 5.4 (e) and 5.4 (f) ). Figure 5.4 (g) shows how the acetylene concentrations vary as a function of filament temperature for input gas mixtures containing 1% CH4-nCln, (n=0-4) in H2. For all the precursors, the C2H2 concentration rises sharply above ~2100C as the H atom concentration increases. However, there is a significant increase in the C2H2 concentration for CCl4 and, to a lesser extent, for CHCl3 at lower temperatures (~1900C-2100C). As an alternative, we might envisage the case where, for CHCl3 for example, a single C-Cl bond is cleaved to form the CHCl2 radical which could then combine with a CH3 radical or react with CH4 to produce CHCl2CH3 (+ H in the latter case). Subsequent elimination of two HCl molecules, reactions which are known to have reasonably low activation barriers5.18, would yield acetylene. We should point out, however, that radical-radical encounters are likely to be relatively infrequent in the gas phase environment, nor have we been able to detect this intermediate, possibly due to its instability in the presence of atomic hydrogen. However, close inspection of Figure 5.4 (h), which shows how the methyl radical concentrations vary as a function of filament temperature for different chlorocarbon input gas mixtures, indicates that production of appreciable amounts of acetylene at lower filament temperatures for the CCl4/H2 gas mixture may be due to the presence of high concentrations of the methyl radicals in the gas phase. In this case there is a greater steady-state [CH3] and the increased likelihood of methyl recombination, followed by consecutive H abstractions yields larger [C2H2]. Since the formation of [C2H2] depends on k[CH3]2, the detection of large amounts of gas-phase acetylene in a hot filament CVD reactor is generally taken as an indicator of steady state [CH3] and thus of fast diamond film growth.


5.5 Gas composition versus filament temperature for various CH4/Cl2/H2 containing gas mixtures



Similar measurements of the stable gas species were made using different CH4/Cl2/H2 gas mixtures subject to the same process conditions as the chlorine containing hydrocarbon experiments.



Fig.5.5a

Fig.5.5b

Fig.5.5c

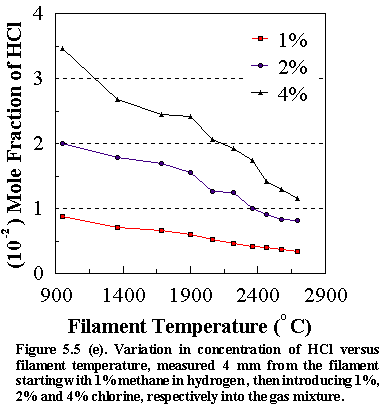

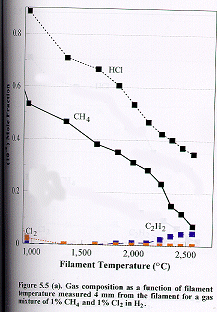

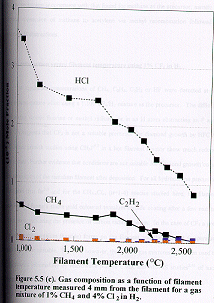

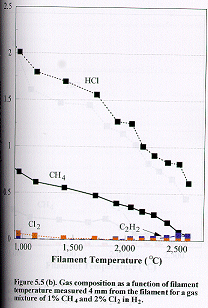

Figure 5.5 shows how the distribution of the major stable product gases [CH4, C2H2, HCl and Cl2 (m/e =70 for 35Cl2)] change as a function of filament temperature for (a) 1%, (b) 2% and (c) 4% Cl2 in the CH4/Cl2 gas mixtures in H2 measured 4 mm from the filament. Almost all the molecular chlorine is dissociated when the filament temperature is ~1000C. The Cl atoms then undergo rapid reaction with hydrogen to form HCl.



Cl + H2 == H + HCl (5.3)



The absolute measured concentrations of both HCl and methane decrease with temperature due to the thermal diffusion effects mentioned previously. At temperatures of ~2100C and above there is a striking similarity in the measured C/Cl product distribution with that obtained with 1% CH2Cl2 in H2 as the input gas mixture (c.f. Figure. 5.4 (b) ). In these two cases the relative C/Cl input mole fractions in H2 are identical.



Fig.5.5d

Fig.5.5e

Fig.5.5f

Fig.5.5g

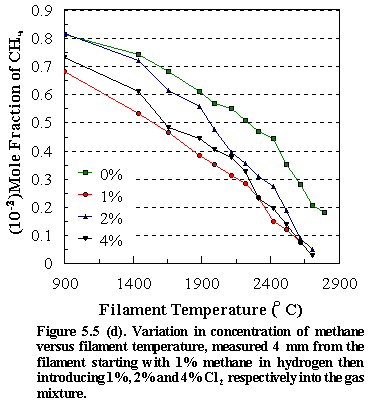

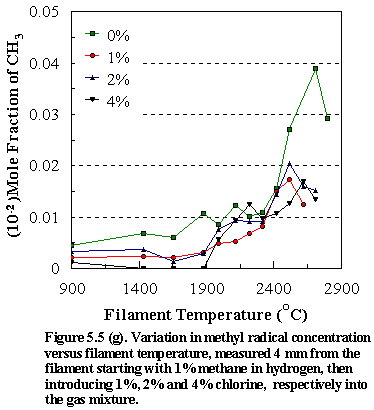

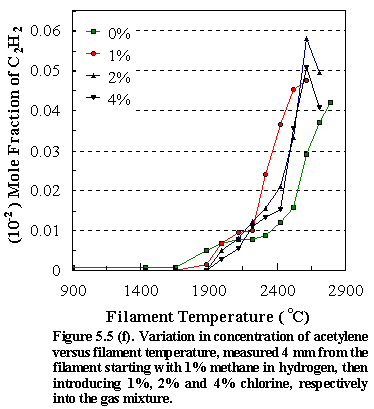

Figure 5.5 shows the temperature variation of: (d) [CH4], (e) [C2H2], (f) [HCl] and (g) [CH3] for different input concentrations of Cl2 (0%, 1%, 2%, 4%) in the CH4/Cl2 gas mixtures in H2. As with the chlorine containing hydrocarbons the observed trends for the hydrocarbon species at and above filament temperatures ~2100C indicate that the reaction mechanism is congruent with that found for methane as the precursor, namely the chemical conversion of methane to acetylene via methyl recombination followed by successive H abstractions.



5.6 Gas composition versus filament temperature using 1% CF4 in H2



No significant concentrations of CH4, C2H4, C2H2 or HF were detected at any filament temperature when using a 1:100 CF4/H2 mixture as the precursor. The difficulty in producing atomic fluorine or methyl radicals, or in an H atom abstracting an F atom from CF4 suggests that CF4 is not a suitable precursor for diamond growth by HFCVD and, indeed, growth studies using CH3F5.7 in a hot filament reactor show much reduced growth rates. Further evidence that conditions are not suitable for diamond growth comes from the analysis of the tantalum filament after deposition. For all hydrocarbon precursors investigated thus far3.5 and for the CH4-nCln, (n=1-4) species studied here, the filament carburises and forms a stable gold coloured tantalum carbide coating after a few minutes of deposition, indicating the presence of carbon radical species. In the case of CF4 a grey film (presumably tantalum fluoride) forms on the filament and the filament temperature tends to be rather unstable. We note, however, that C/H/F gas mixtures have been used to grow diamond successfully by microwave plasma CVD, and MBMS studies5.19 of such systems indicate that HF is the major sink for fluorine.



5.7 Discussion



As with the hydrocarbon precursor gases,5.4 chlorine containing hydrocarbons are reduced to methane at very similar temperatures, the other major product being hydrogen chloride which is formed in near stoichiometric amounts. At higher filament temperatures the temperature variation of the relative CH4/C2H4/C2H2 product distribution generally mirrors that found for the hydrocarbon precursors at similar C/H2 input ratios. Only with CHCl3 or CCl4 do we observe significant acetylene formation at considerably lower filament temperatures which may indicate the presence of transient chlorine-containing radical species supplementing the CH3 radicals as precursors to acetylene production. For the CCl4/H2 gas mixture however, formation of appreciable amounts of acetylene at lower filament temperatures may be a consequence of high concentrations of the methyl radicals present in the gas phase.



Comparison of Figures 5.6 (a) and 5.6 (b) indicates that at these filament temperatures (2300C) both the chlorocarbon and Cl2 input precursors are completely dissociated producing HCl in near stoichiometric proportions. Thermal diffusion effects again account for the reduction in the concentration of HCl measured 4 mm from the filament. At such filament temperatures the H atom concentration is of the order of 1-2%5.20 and abstraction of Cl from the relatively weak Cl-Cl and C-Cl bonds (see Table 5.1) by H atoms to form HCl is predicted on thermodynamic grounds. Indeed, reduction of the chloromethanes to produce HCl is observed to be largely complete at filament temperatures of ~1800C and that of Cl2 at temperatures less than 900C.5.21

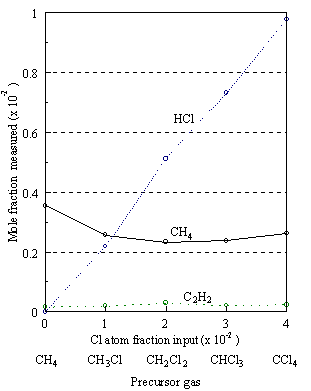

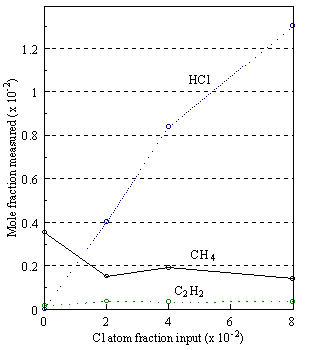

Figure 5.6 (a). Gas composition versus Cl atom fraction input in the feed gas using 1% each of CH4-nCln (n=0-4) in H2 at 2300C, measured 4 mm from the filament.





Figure 5.6 (b). Gas composition versus Cl atom fraction input in the feed gas using 1% CH4 in H2 with additional Cl2 varying from 0-4% at 2300C, measured 4 mm from the filament.



The breakdown of the chlorocarbon precursors to form HCl produces a concomitant increase in the concentration of methane such that at 2300C it is the dominant carbon-containing species. The H atom concentration at these temperatures may also initiate H abstraction from methane yielding significant amounts of methyl radicals. Methyl recombination to form C2H6 followed by successive H abstractions produces significant amounts of (C2H2), the other main carbon containing species observed (see Figure 5.6). No C2H6 and only small concentrations of C2H4 were detected, presumably because their thermodynamic instability in the presence of atomic hydrogen leads to low steady-state concentrations. Previous gas-phase composition studies on CH4/H2 mixtures3.1 indicate that C2H2 is the most stable two-carbon species as the H atom concentration increases, and at standard growth temperatures a CH4 to C2H2 ratio of ~8:1 is observed.



Previous reports5.7,5.8,5.13 have speculated upon the relative importance of: (a) modification of the gas-phase chemistry enhancing the production of diamond precursor species, or (b) fast reaction of atomic hydrogen with surface bonded C-Cl and atomic Cl with surface bonded C-H which open up active surface growth sites at reduced substrate temperatures, as possible explanations for the observations that addition of small amounts of chlorine in the CVD process encourages diamond growth at lower substrate temperatures.



The inability to detect the CH2Cl radical in the present MBMS study suggests that its concentration must be at least an order of magnitude smaller than that of CH3 at filament temperatures which produce optimum diamond growth (2200-2400C). This is presumably because the residual CH4 concentration at these elevated temperatures is several times higher than that of CH3Cl even when CH3Cl is the input precursor; for dichloromethane and trichloromethane no significant concentration of CH3Cl is measurable. This is to be expected since thermodynamic and kinetic arguments suggest that the C-Cl bond is likely to be broken in preference to the C-H bond. Therefore, we do not believe that gas-phase chemistry involving chlorohydrocarbon radicals can be primarily responsible for enhanced growth rates at lower substrate temperatures. However, it is possible that the addition of the CH2Cl radical to the diamond surface and the subsequent elimination of HCl may occur more readily than addition of the CH3 radical followed by elimination or successive abstraction of hydrogen at lower substrate temperatures.



At filament temperatures above 2000C most of the chlorine is rapidly abstracted by H atoms from the parent chlorohydrocarbon to produce HCl in amounts proportional to the Cl mole fraction in the source gas. Similarly Cl2 is almost entirely reduced to HCl at filament temperatures above 1000C. However, in this case it is atomic chlorine produced by the thermal dissociation of Cl2 which reacts rapidly with molecular hydrogen to form HCl. It has been proposed that the ability of chlorine to play a part in CVD diamond deposition stems from the interchangeability of atomic Cl with atomic H in an HCl/H2 atmosphere. Calculations by Bai et al.5.7 indicate that for the reaction,



kf

H + HCl === Cl + H2 (5.3)

kb



the equilibrium constant (Keq) is close to unity over a large temperature range and the forward and backward rate constants (kf and kb) are large (See Table 5.3), thereby allowing rapid equilibration at typical substrate temperatures. Therefore, the relative concentration ratio of Cl/H atoms is proportional to the Cl fraction in the source gas mixture regardless of the form of chlorine in the input mixture.





log kf

log Keq

Reaction

T= 500 K 800 K 1200 K

T= 500 K 800 K 1200 K

H + HF H2 + F

-0.7 5.2 8.4

-13.9 -8.6 -5.7

H + HCl H2 + Cl

H + CH4 CH3 + H2

H + CH3Cl CH3 + HCl

H + CH3Cl CH2Cl + HCl

Cl + CH4 CH3 + HCl

Cl + CH3Cl CH2Cl + HCl

11.7 12.2 12.5

8.9 11.0 12.1

9.6 11.0 12.2



11.7 12.1 12.8

12.2 12.6 12.8

0.2 0.03 -0.1

1.0 1.2 1.4

9.9 6.8 5.0

3.2 2.6 2.2



0.8 1.2 1.4

3.0 2.6 0.0



Table 5.3. Equilibrium and forward rate constants vs. temperature (taken from Reference 5.7).



The MBMS results combined with the AES analysis5.22 of the as-grown diamond films are consistent with the premise that Cl atoms play some part in gas-surface reactions involved in the production of active surface growth sites at reduced substrate temperatures. Chemical kinetics calculations5.13 have shown that the rate of H abstraction by Cl atoms from a (110) diamond surface at 670C is some 60 times faster than abstraction by gas-phase H atoms. As indicated above, the Cl atom concentration at standard filament temperatures is directly related to the Cl fraction in the input gas, regardless of the form of the chlorine precursor. Our chlorine-assisted diamond growth studies shows that if the Cl input fraction is too high (>0.06) the quality of the diamond grown at normal substrate temperatures (~900C) is reduced, probably because a large fraction of surface sites are activated, leading to the graphitisation of the diamond surface. These findings broadly agree with the diamond growth domain indicated in the C/H/Cl ternary gas-phase composition diagram of Bachmann et al.5.23 However, at lower substrate temperatures the presence of such chlorine concentrations in the process gas mixture would result in an increased deposition rate due to the greater efficiency of surface hydrogen abstraction by Cl atoms.



The inability of fluorine containing precursors to participate in the hot filament CVD of diamond results from the strength of the C-F bond. Our gas-phase composition findings when using 1% CF4 in H2 indicate that very little CH4 or HF are produced; further, even if we could produce atomic fluorine, the equilibrium



H + HF == H2 + F (7)

lies far to the left in a hydrogen atmosphere (See Table 5.3).
