The Circle Method



A geometric representation of solutions of the secular equations for cyclic conjugated polyenes



·    A particularly useful (and easy) way of finding the MOs of cyclic conjugated polyenes is the ‘Geometric’ or ‘Circle’ Method.

·    In this method, a diagram of the polyene is inscribed in a circle of radius 2b.

·    One apex of the polyene must be at the bottom.

·    The vertical axis represents energy.

·    The centre of the circle has an energy a.

·    The lowest point of the circle corresponds to an energy of (a + 2b).  Note that b is negative, so this is a lower energy than a.

·    There is a molecular orbital at the energy corresponding to where the corners are situated.



For example:

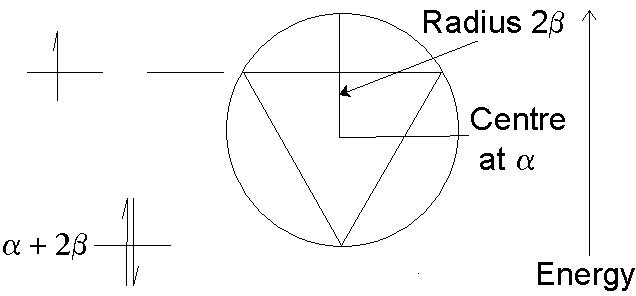

3-membered ring (cyclopropenyl radical)









________________________________________

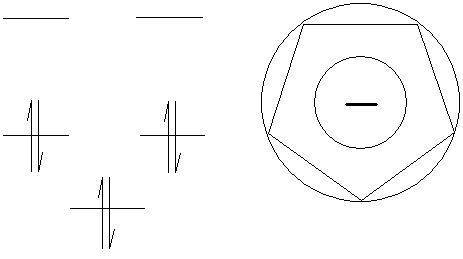

5-membered ring (cyclopentadienyl anion)





________________________________________

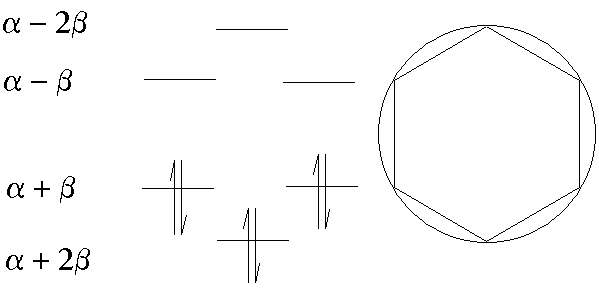

6-membered ring (benzene)







This leads on to the concept of aromaticity...
