Erasing a CD-RW



Erasing a CD-RW is done by heating the amorphous material to above the crystillisation temperature, at around 200 °C. The phase-change material does not melt at this temperature so the atoms cannot randomly rearrange, they instead re-create the ordered crystalline structure. The laser must sustain the crytallisation temperature for a long enough period for the process to fully occur, so erasing takes longer than writing.

Erasing is usually done by dragging the “erase laser” over the entire length of the data track regardless of whether there are amorphous areas or not. This ensures that a full and even blank disc is created.

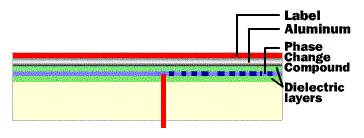

Image adapted from www.howstuffworks.com
